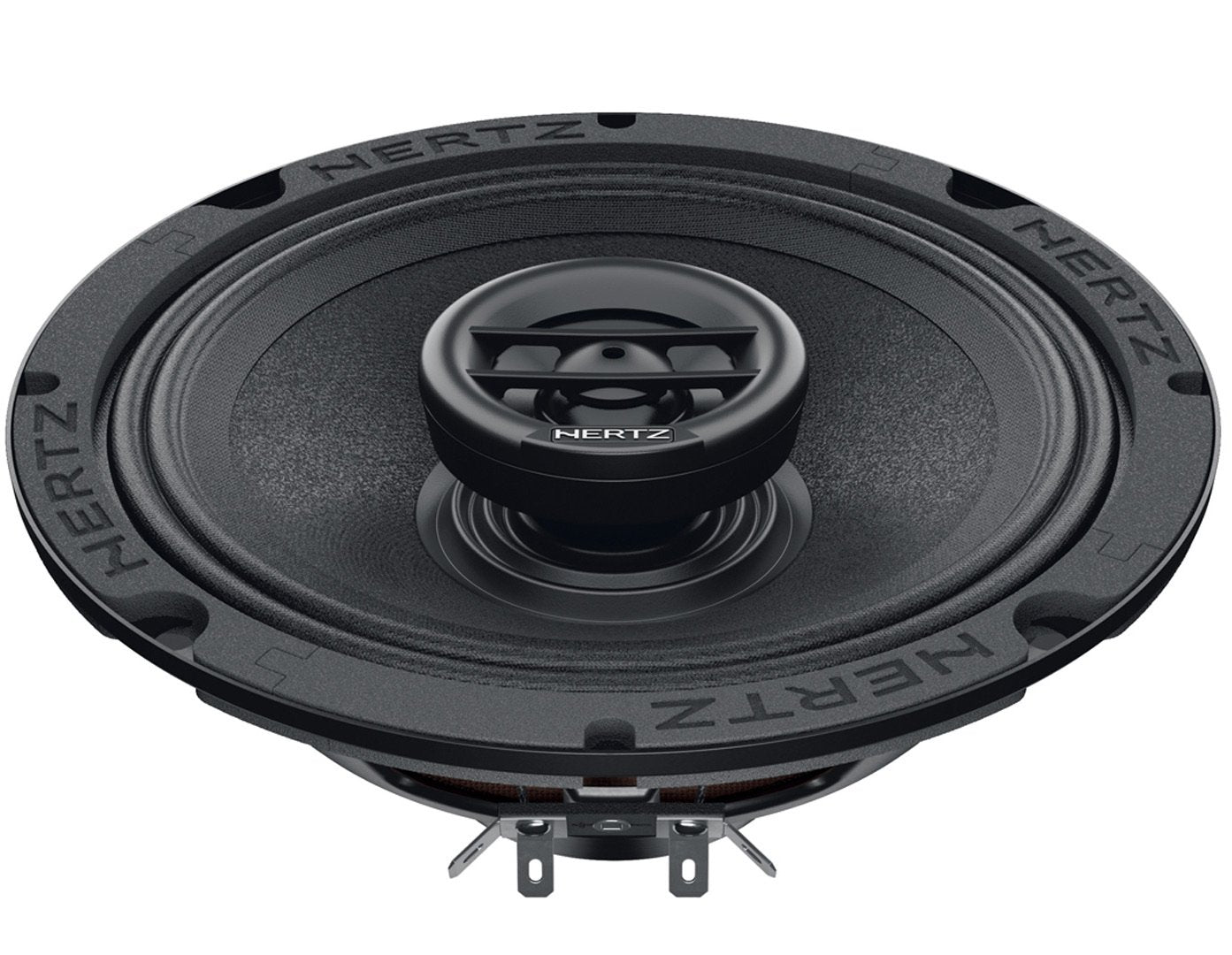

HERTZ - 6.5” - SPL MIDRANGE - SX165 NEO SPL COAXIAL
Couldn't load pickup availability
**SOLD IN PAIRS **
Totally new NEO SPL coaxial SX 165 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 165 NEO features a large Hi-SPL 1.4” PEI dome tweeterwith resettable solid-state protection circuitand a protective rubber gasket for high SPL and a safe outdoor use.
FEATURES
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.
DATA TABLE
| Power Handling - Peak W | 200 |
| Power Handling - Continuous W | 100 Hi-pass filtered @ 150 Hz - 12 dB Oct. |
| Impedance Ω | 4 |
| Frequency response Hz | 100 up to 20k |
| Sensitivity dB SPL | 96,5 |
| Woofer size mm (in.) | 165 (6.5) |
| Midwoofer sizemm (in.) | - |
| Tweeter size mm (in.) | 35 (1.4) |
| Supertweeter size mm (in.) | - |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter voice coil Ø mm (in.) | 28 (1.1) |
| Woofer magnet | Special Neodymium N38 H |
| Midwoofer magnet | - |
| Tweeter magnet | Special Neodymium N38 H |
| Woofer cone | Water repellent pressed paper |
| Tweeter dome | Pei |
| Supertweeter dome | - |
