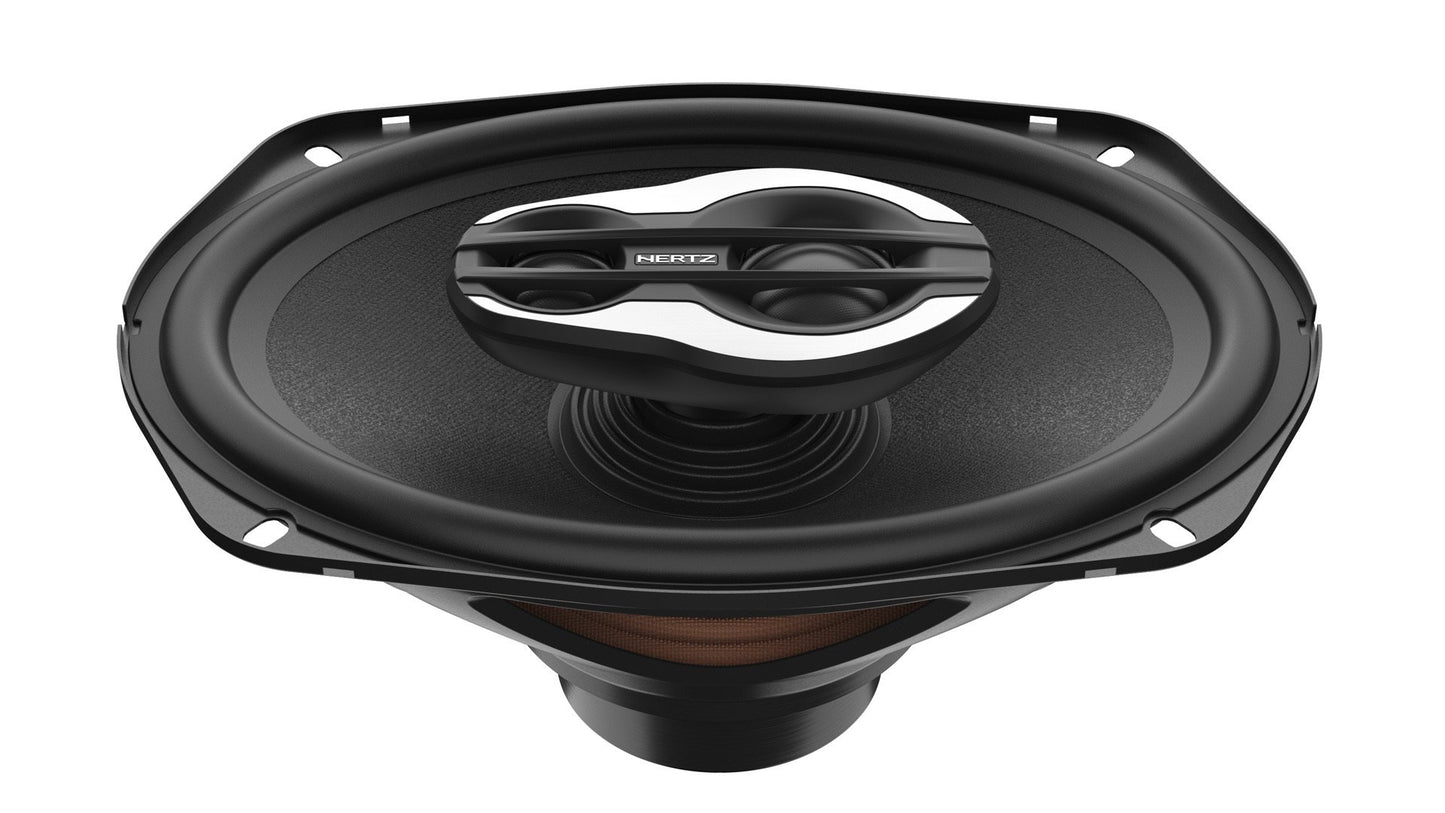

HERTZ - SX 690 NEO SPL COAXIAL
Couldn't load pickup availability
SX 690 is a real beast with an Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome supertweeter with resettable solid-state protection circuit. Cone are made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
FEATURES
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome supertweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide comatibility with most common motorcycle connections.
TECHNOLOGIES
-
NATURE PROOF
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!
DATA TABLE
| Power Handling - Peak W | 260 |
| Power Handling - Continuous W | 130 |
| Impedance Ω | 4 |
| Frequency responseHz | 65 ÷ 24k |
| Sensitivity dB SPL | 94 |
| Woofer size mm (in.) | in. 6 x 9 |
| Midwoofer size mm (in.) | - |
| Tweeter size mm (in.) | 29 (1.14) |
| Supertweeter sizemm (in.) | 20 (0.8) |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter voice coil Ø mm (in.) | 25 (1) |
| Woofer magnet | Special Neodymium N38 H |
| Midwoofer magnet | - |
| Tweeter magnet | Special Neodymium N38 H |
| Woofer cone | Water repellent pressed paper |
| Tweeter dome | Tetolon |
| Supertweeter dome |
Tetolon |
