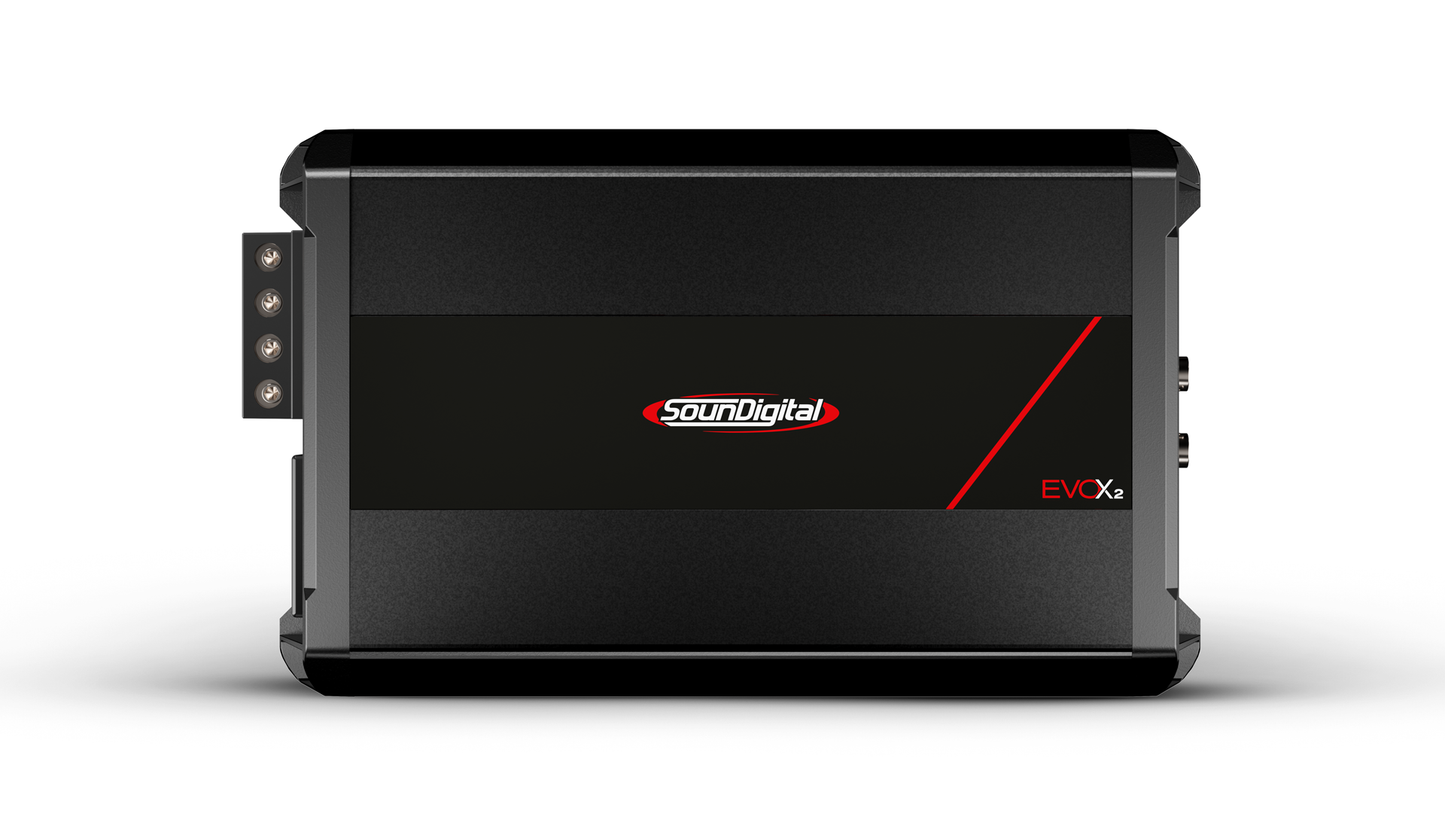

SounDigital 1200.4 EVOX2
IMPROVED HEAT SINK AND RCA TERMINALS FROM THE ORIGINAL EVOX LINE
TECHNICAL SPECIFICATIONS
1200.4 EVOX2 – 2Ω
Power @ 4Ω: 4 X 131 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 1Ω: 4 X 300 WRMS
Bridge Power @ 4Ω: 2 X 396 WRMS
Bridge Power @ 2Ω: 2 X 600 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 49 A
Current Draw (Max): 98 A
Recommended Fuse (Music): 60 A
Total Efficiency: 85%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
1200.4 EVOX2 – 4Ω
Power @ 4Ω: 4 X 198 WRMS
Power @ 2Ω: 4 X 300 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 49 A
Current Draw (Max): 98 A
Recommended Fuse (Music): 60 A
Total Efficiency: 85%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 88dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
