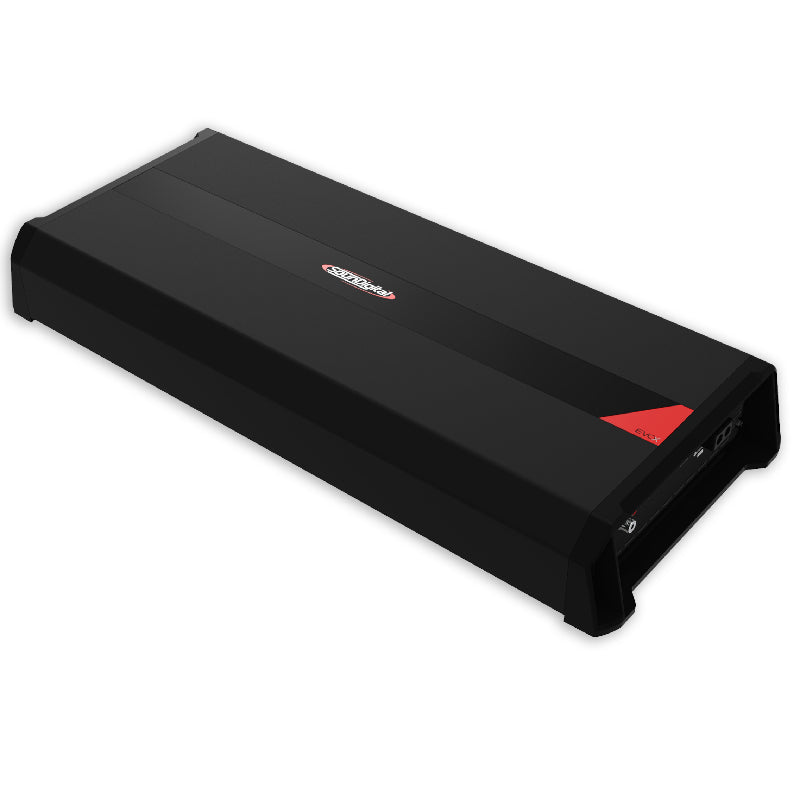

SounDigital 12000.1 EvoX (1 or 2 Ohm)
TECHNICAL SPECIFICATIONS
12000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 5227 WRMS
Power @ 12.6V @ 2Ω: 1 X 7920 WRMS
Power @ 12.6V @ 1Ω: 1 X 12000 WRMS
Power @ 14.4V @ 4Ω: 1 X 5828 WRMS
Power @ 14.4V @ 2Ω: 1 X 8831 WRMS
Power @ 14.4V @ 1Ω: 1 x 13380 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 627 A
Current Draw (Max): 1253 A
Recommended Fuse (Music): 2 X 350 A
Total Efficiency: 76%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 20.8 x 8.8 x 2.8 in
Product Dimensions: 53.0 x 22.5 x 7.1 cm
12000.1 EVOX – 2Ω
Power @ 12.6V @ 4Ω: 1 X 7920 WRMS
Power @ 12.6V @ 2Ω: 1 X 12000 WRMS
Power @ 12.6V @ 1Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 8831 WRMS
Power @ 14.4V @ 2Ω: 1 X 13380 WRMS
Power @ 14.4V @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 627 A
Current Draw (Max): 1253 A
Recommended Fuse (Music): 2 X 350 A
Total Efficiency: 76%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 20.8 x 8.8 x 2.8 in
Product Dimensions: 53.0 x 22.5 x 7.1 cm
