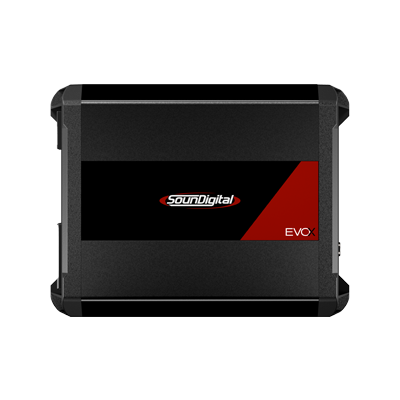

SounDigital 1600.1 EvoX2 (1 or 2 Ohm)

TECHNICAL SPECIFICATIONS

1600.1 EVOX2 – 1Ω
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 62 A
Current Draw (Max): 125 A
Recommended Fuse (Music): 70 A
Total Efficiency: 89%
Damping Factor: >2000
Frequency Response (-3dB): 5Hz – 25kHz
SNR: 94dB
Crossover HPF: 5Hz – 40Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm

1600.1 EVOX2 – 2Ω
Power @ 4Ω: 1 X 1056 WRMS
Power @ 2Ω: 1 X 1600 WRMS
Power @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 62 A
Current Draw (Max): 125 A
Recommended Fuse (Music): 70 A
Total Efficiency: 89%
Damping Factor: >2000
Frequency Response (-3dB): 5Hz – 25kHz
SNR: 94dB
Crossover HPF: 5Hz – 40Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
