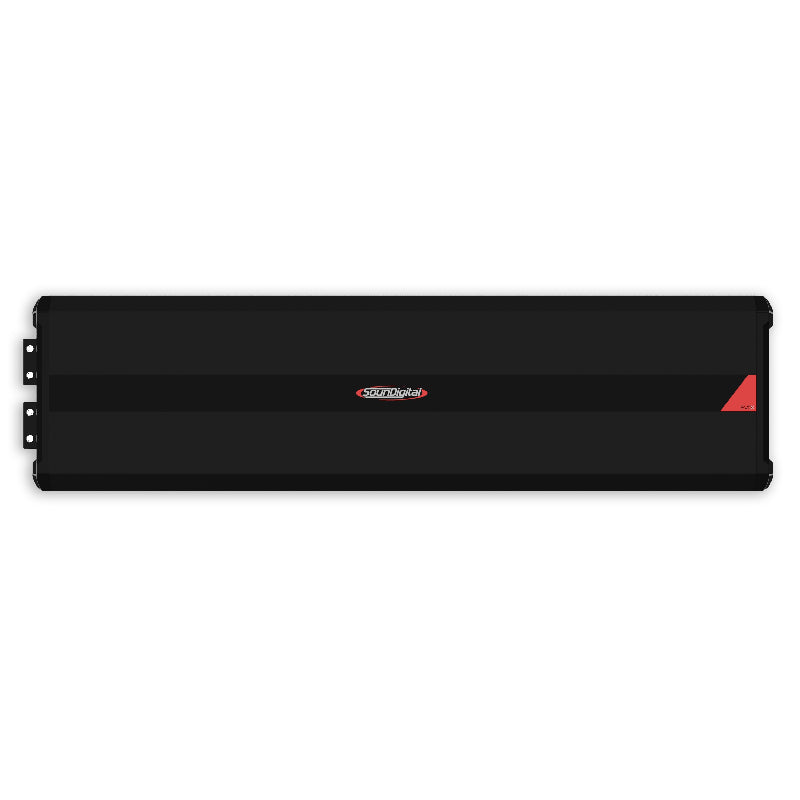

SounDigital 20000.1 EvoX

TECHNICAL SPECIFICATIONS

20000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 8712 WRMS
Power @ 12.6V @ 2Ω: 1 X 13200 WRMS
Power @ 12.6V @ 1Ω: 1 X 20000 WRMS
Power @ 14.4V @ 4Ω: 1 X 9714 WRMS
Power @ 14.4V @ 2Ω: 1 X 14718 WRMS
Power @ 14.4V @ 1Ω: 1 X 22300 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 980 A
Current Draw (Max): 1960 A
Recommended Fuse (Music): 1000 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.2%
Product Dimensions: 33.9 x 8.8 x 2.8 in
Product Dimensions: 86.3 x 22.5 x 7.1 cm
