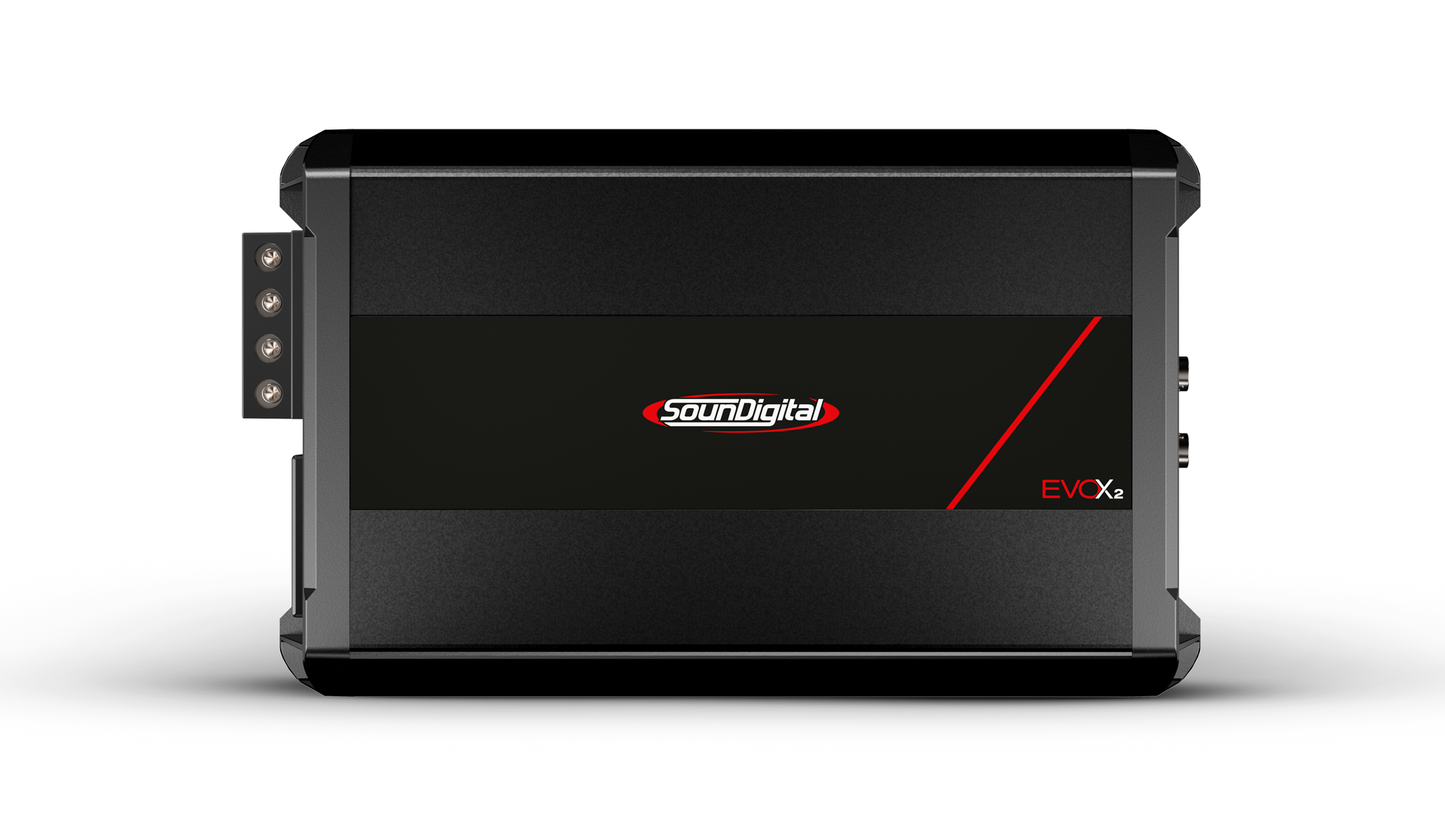

SounDigital 2400.4 EVOX2

IMPROVED HEAT SINK AND RCA TERMINALS FROM THE ORIGINAL EVOX LINE

TECHNICAL SPECIFICATIONS

2400.4 EVOX2 – 2Ω
Power @ 4Ω: 4 X 262 WRMS
Power @ 2Ω: 4 X 396 WRMS
Power @ 1Ω: 4 X 600 WRMS
Bridge Power @ 4Ω: 2 X 792 WRMS
Bridge Power @ 2Ω: 2 X 1200 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 104 A
Current Draw (Max): 208 A
Recommended Fuse (Music): 120 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 25kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 8.9 x 5.4 x 2.2 in
Product Dimensions: 22.7 x 13.6 x 5.5 cm

2400.4 EVOX2 – 4Ω
Power @ 4Ω: 4 X 396 WRMS
Power @ 2Ω: 4 X 600 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 1200 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 104 A
Current Draw (Max): 208 A
Recommended Fuse (Music): 120 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 25kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 8.9 x 5.4 x 2.2 in
Product Dimensions: 22.7 x 13.6 x 5.5 cm
