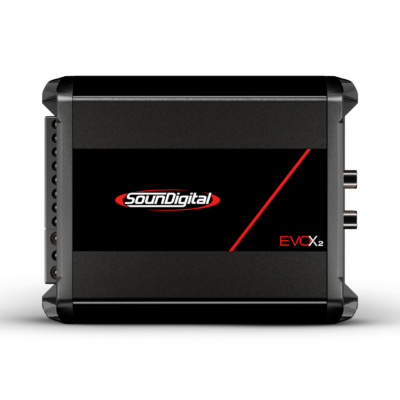

SounDigital 800.4 EvoX2

IMPROVED HEAT SINK AND RCA TERMINALS FROM THE ORIGINAL EVOX LINE

TECHNICAL SPECIFICATIONS

800.4 EVOX2 – 4Ω
Power @ 4Ω: 4 X 132 WRMS
Power @ 2Ω: 4 X 200 WRMS
Power @ 1Ω: N/A
Bridge Power 4Ω: 2 X 400 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 35 A
Current Draw (Max): 70 A
Recommended Fuse (Music): 40 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 5.8 x 4.4 x 2.0 in
Product Dimensions: 14.8 x 11.3 x 5.1 cm
