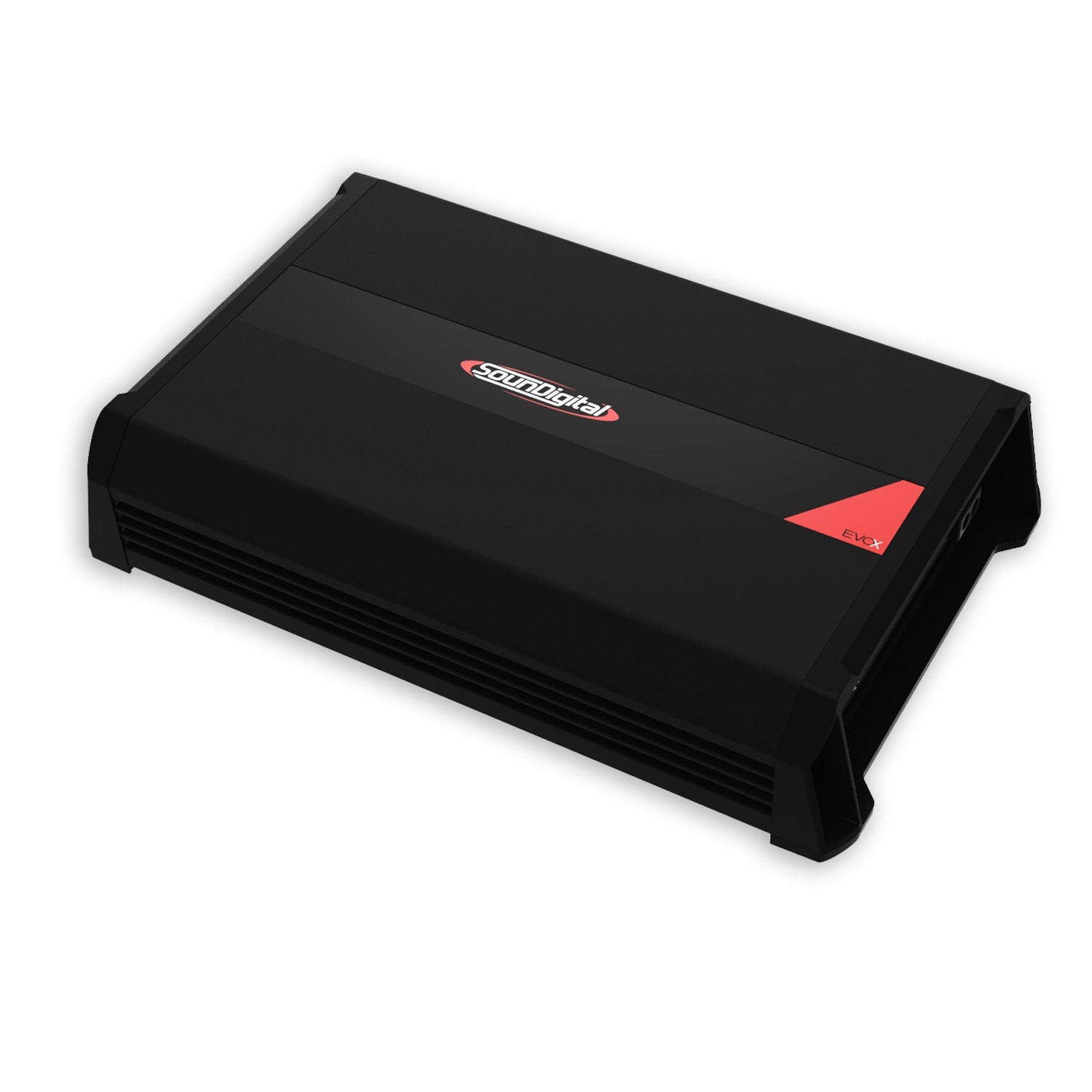

SounDigital 8000.1 EvoX

TECHNICAL SPECIFICATIONS

8000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 3485 WRMS
Power @ 12.6V @ 2Ω: 1 X 5280 WRMS
Power @ 12.6V @ 1Ω: 1 X 8000 WRMS
Power @ 14.4V @ 4Ω: 1 X 3886 WRMS
Power @ 14.4V @ 2Ω: 1 X 5887 WRMS
Power @ 14.4V @ 1Ω: 1 X 8920 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 402 A
Current Draw (Max): 804 A
Recommended Fuse (Music): 500 A
Total Efficiency: 79%
Damping Factor: >1000
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 82dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 13.9 x 8.8 x 2.8 in
Product Dimensions: 35.4 x 22.5 x 7.1 cm

8000.1 EVOX – 2Ω
Power @ 12.6V @ 4Ω: 1 X 5280 WRMS
Power @ 12.6V @ 2Ω: 1 X 8000 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: N/A
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 5887 WRMS
Power @ 14.4V @ 2Ω: 1 X 8920 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: N/A
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 402 A
Current Draw (Max): 804 A
Recommended Fuse (Music): 500 A
Total Efficiency: 79%
Damping Factor: >1000
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 82dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 13.9 x 8.8 x 2.8 in
Product Dimensions: 35.4 x 22.5 x 7.1 cm
